The ILB24 - DIN-rail mounted Intelligent Line Break Controller used to monitor and shutdown pipelines in case of an emergency.
The ILB24 - DIN-rail mounted Intelligent Line Break Controller used to monitor and shutdown pipelines in case of an emergency.
Val Controls

ILB24-A

SKU: ILB24-A-210043

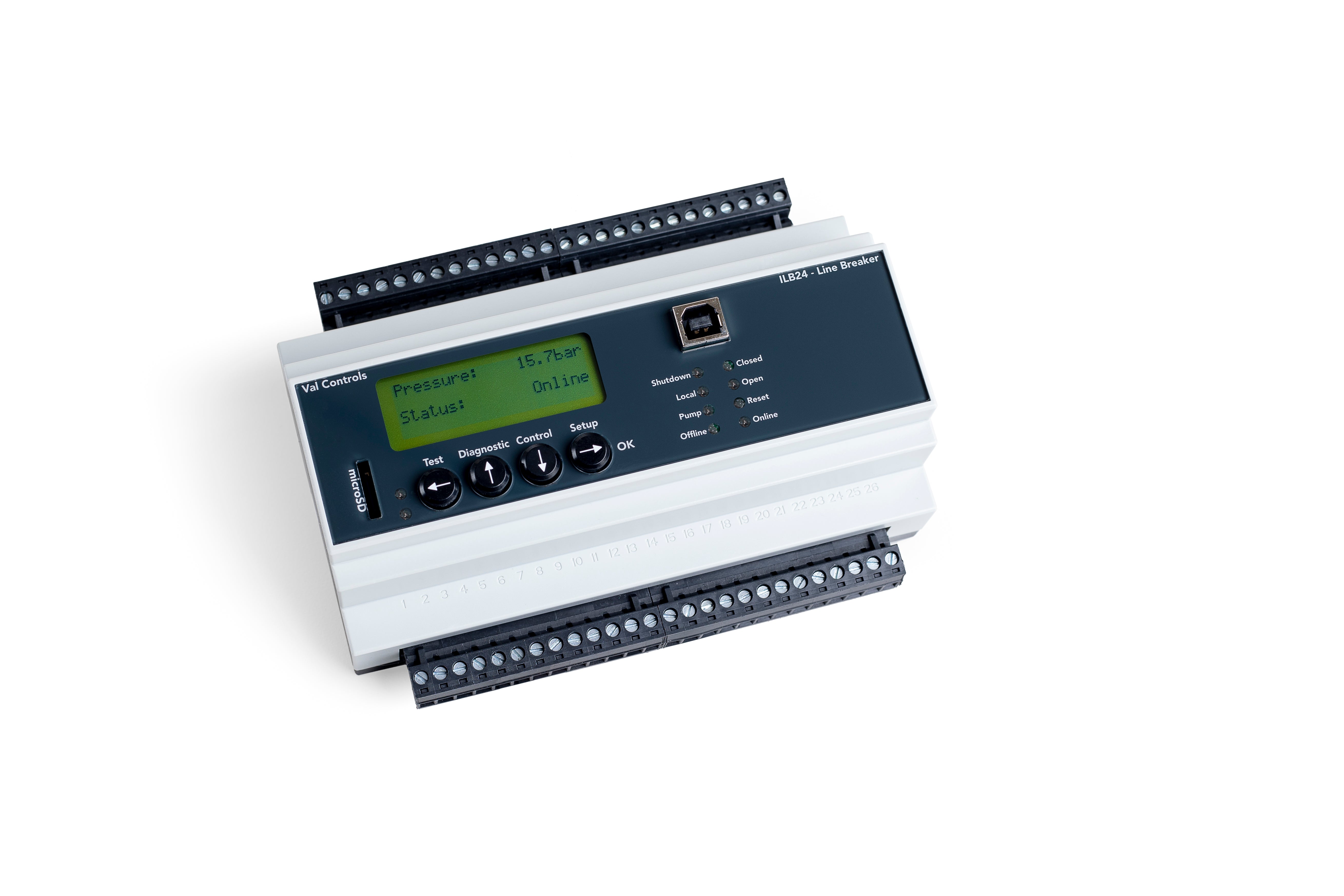

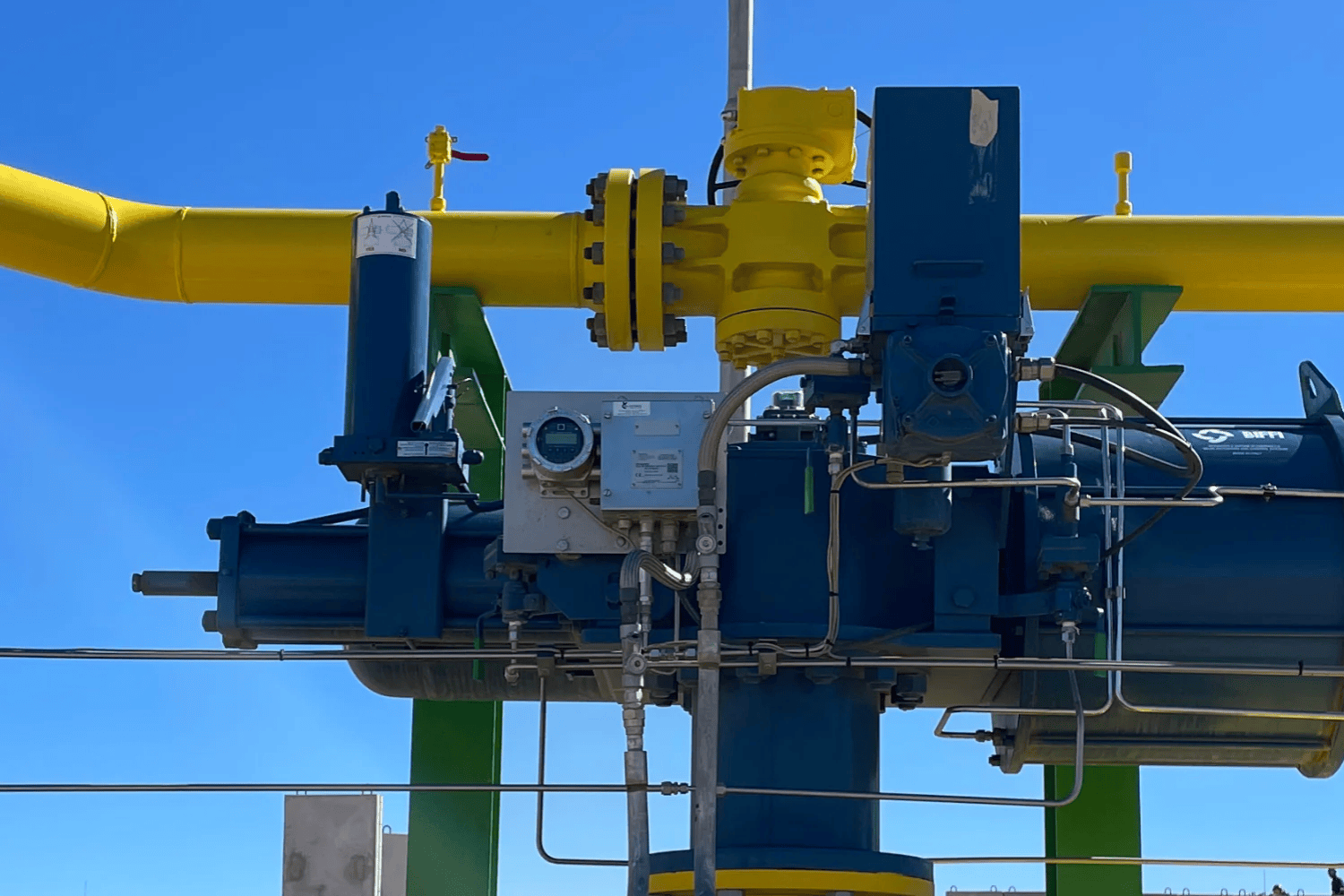

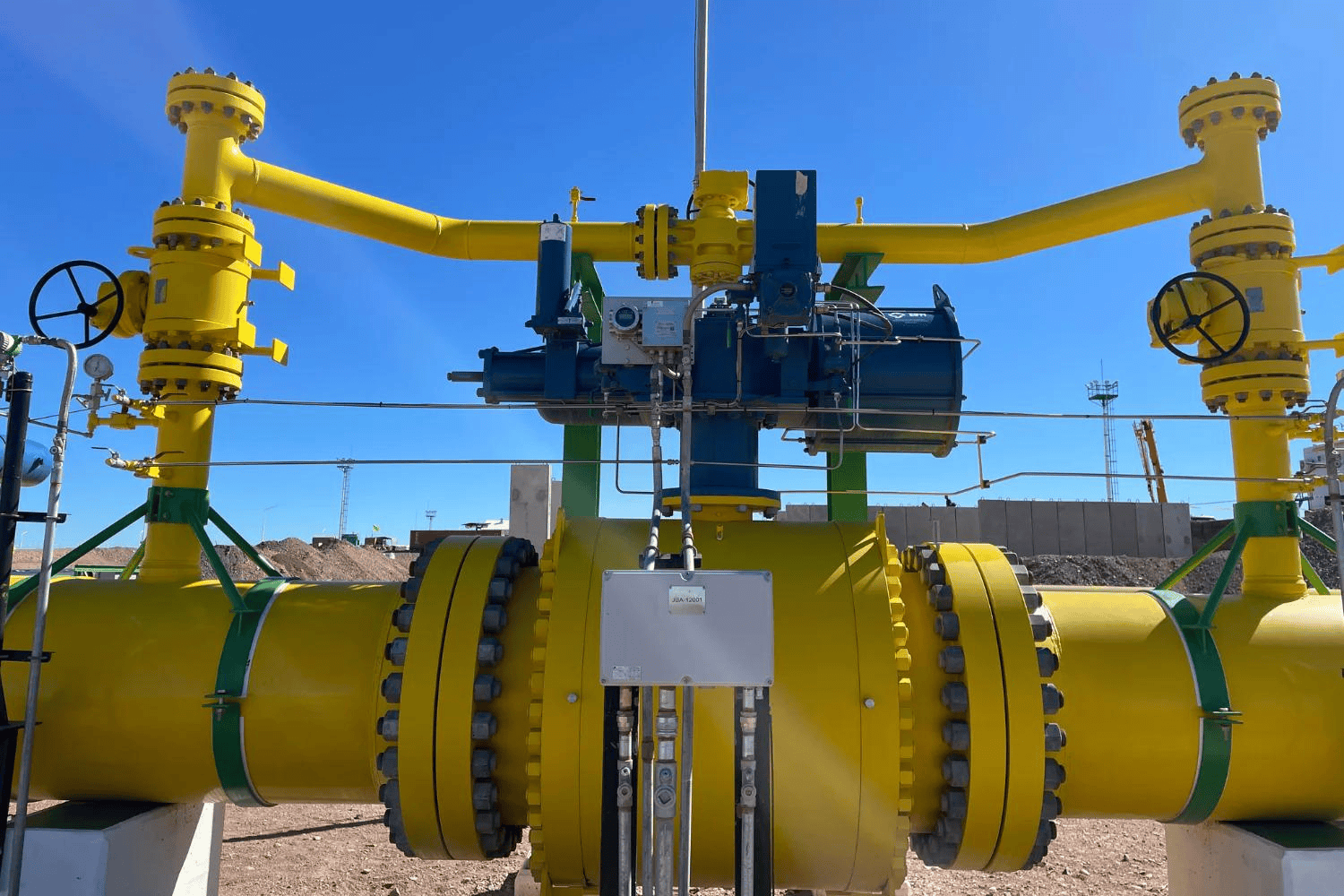

The ILB24-A is a DIN-rail mounted Intelligent Line Break Controller used to monitor and shutdown pipelines in case of an emergency. The Controller constantly monitors the pressure of the pipeline and will shutdown the flow of the pipeline if abnormal pressure is detected.

This controller is intended for already installed systems or customers who have their own housing and installation. It is compatible with almost any hydraulic and pneumatic actuator on the market.

The controllers offer advanced diagnostic capabilities including 24/7 monitoring and surveillance of the pipeline, event logging and alarms in case of pressure drop.

Product line brochure>
Datasheet>
Documentation>

Product details

The ILB24-A is a DIN-rail mounted Intelligent Line Break Controller used to monitor and shutdown pipelines in case of an emergency. The Controller constantly monitors the pressure of the pipeline and will shutdown the flow of the pipeline if abnormal pressure is detected.

This controller is intended for already installed systems or customers who have their own housing and installation. It is compatible with almost any hydraulic and pneumatic actuator on the market.

The controllers offer advanced diagnostic capabilities including 24/7 monitoring and surveillance of the pipeline, event logging and alarms in case of pressure drop.

Approvals and standards

EMC according to IEC 61000

Design

Temperature range: -30°-+80°
Ingress protection: IP20
Enclosure material: Plastic

Communication

Modbus

Power

24VDC – unit power consumption <2W

User interface

The local display control is available for the ILB24 model, granting full access to configure the controller and control the valve system. Furthermore, the ILB24 is equipped with various indicator LEDs that show the status of the system.

The ILB24 - DIN-rail mounted Intelligent Line Break Controller used to monitor and shutdown pipelines in case of an emergency.

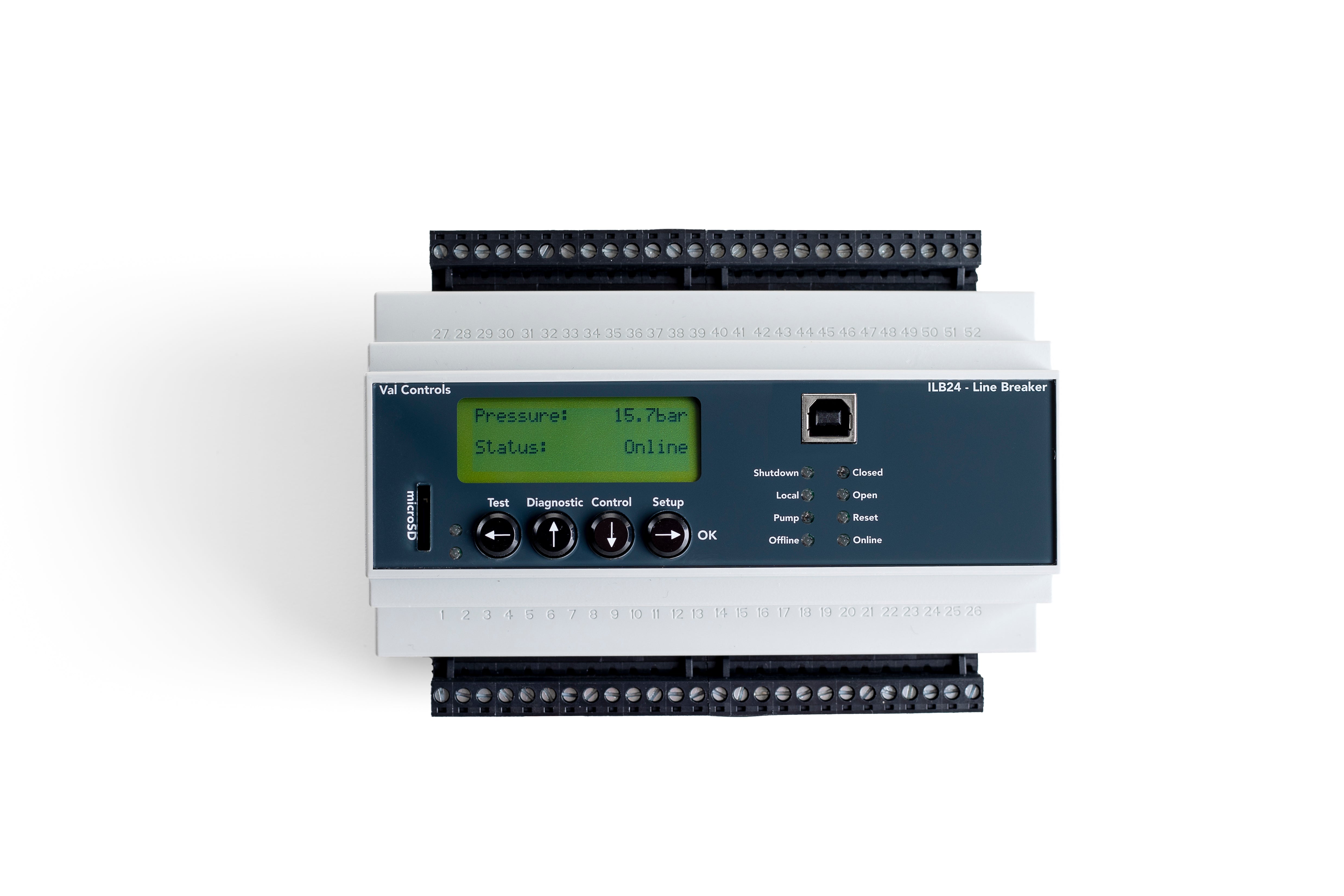

Graphical display and control buttons

The display is a four lined graphical display with backlight feature and adjustable contrast.

On the display you can see the status of the valve system, check position & pressure, start tests and perform diagnostics.

System LEDs

Indicators showing the overall system health.

  • Red: Indicates system error
  • Green: Indicates System OK

USB

The USB connection can be used to connect the ILB24 to a PC with ValConnect installed. ValConnect can be used to configure and control the ILB24 from the PC.

To learn more about ValConnect click here.

* USB function only possible when Exd enclosure is opened Please ensure all safety measures required prior opening an Ex d enclosure.

Indicator LEDs

The LED indicators can display various messages.

  • Valve open or closed
  • Valve movement in progress
  • Online
  • Offline
  • Reset
  • Trip
  • Local control mode enabled
  • Pump active
